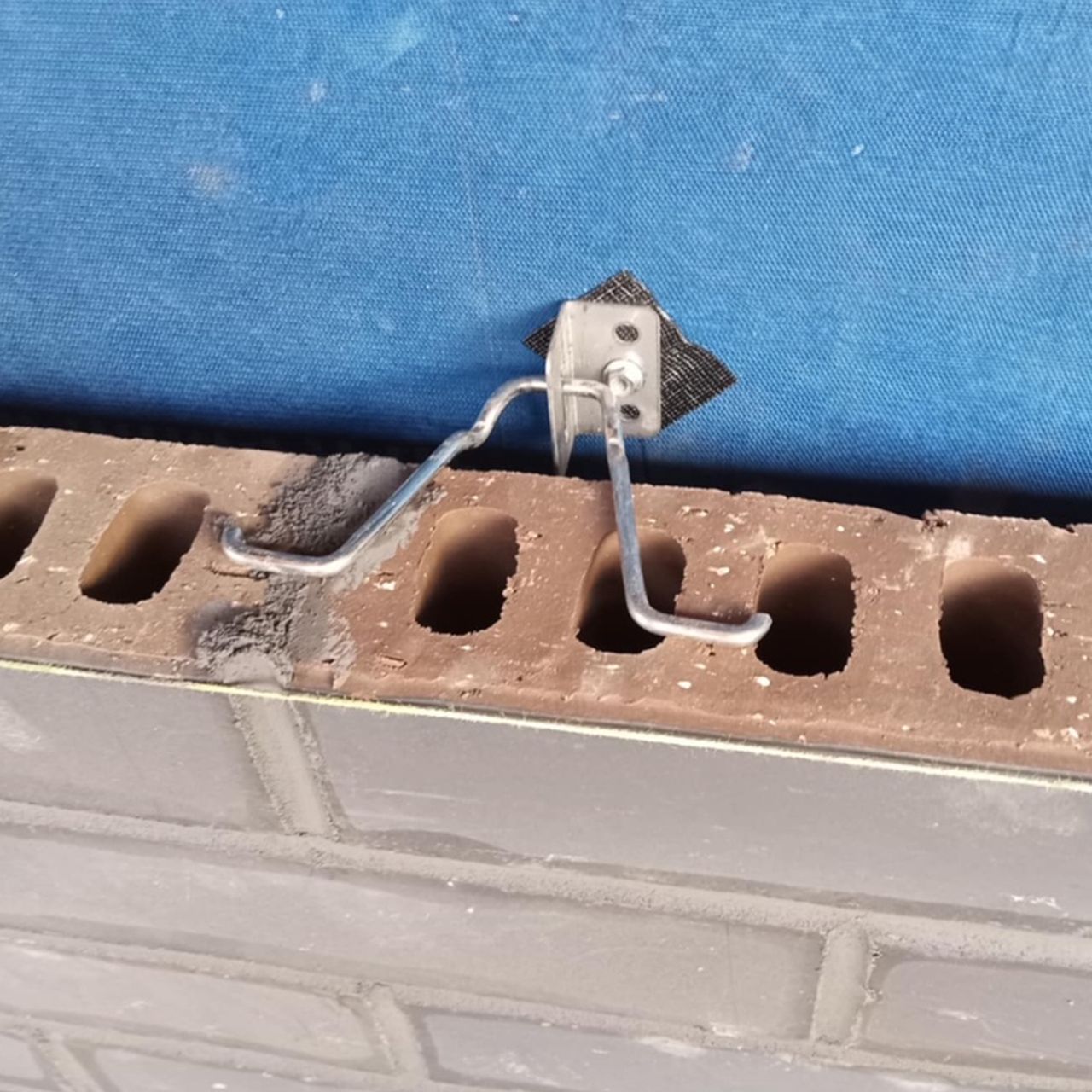

A Type B veneer tie manufactured from 5mm diameter 316 stainless steel wire with mechanical keying into the mortar and water shed features. Slot and holes in base bracket allow placement adjustment.
Key Benefits
Made from top quality 316 stainless steel
Medium Duty
Provides a mechanical link between veneer and the frame or support structure.
Screw holes compatible with most screw types
Drip line to stop water tracking towards the building
Grab hooks to hold the Q-Tie tight into the mortar.
Complies to AS/NZS2699.1.2000
Use on commercial or multi story residential builds.
Available in 2 x sizes: 95mm and 115mm (overall)
Approx. 8 brick ties per m2*
*Your facade/structural engineer will confirm the number required per m2 of brick course.
