4mm Bricklock products have been developed to strengthen brick veneer, walls, and fences.

An excellent product for areas that are prone to cracking or movement. Made from 4 mm galvanised or stainless steel.

  • The most common areas to use the reinforcing are: above all windows and to all external corners.

  • Other vulnerable areas are: where there is a gap smaller than 800mm, for example, A window near a deck, where a window meets a rooftop or rooftop gable meets a soffit. Close up Bricklock spacing to every 5th course in these areas.


Disclaimer
- ‘Bricklock’ is designed to add strength to the brick veneer and is over and above the normal New Zealand Building Code for brick veneer construction. At no stage do Masons guarantee that it will completely stop any possible cracking in the veneer.

Applications

When specifying or installing Bricklock, a common-sense approach to where the product is installed must be used. Typically every 5th course.

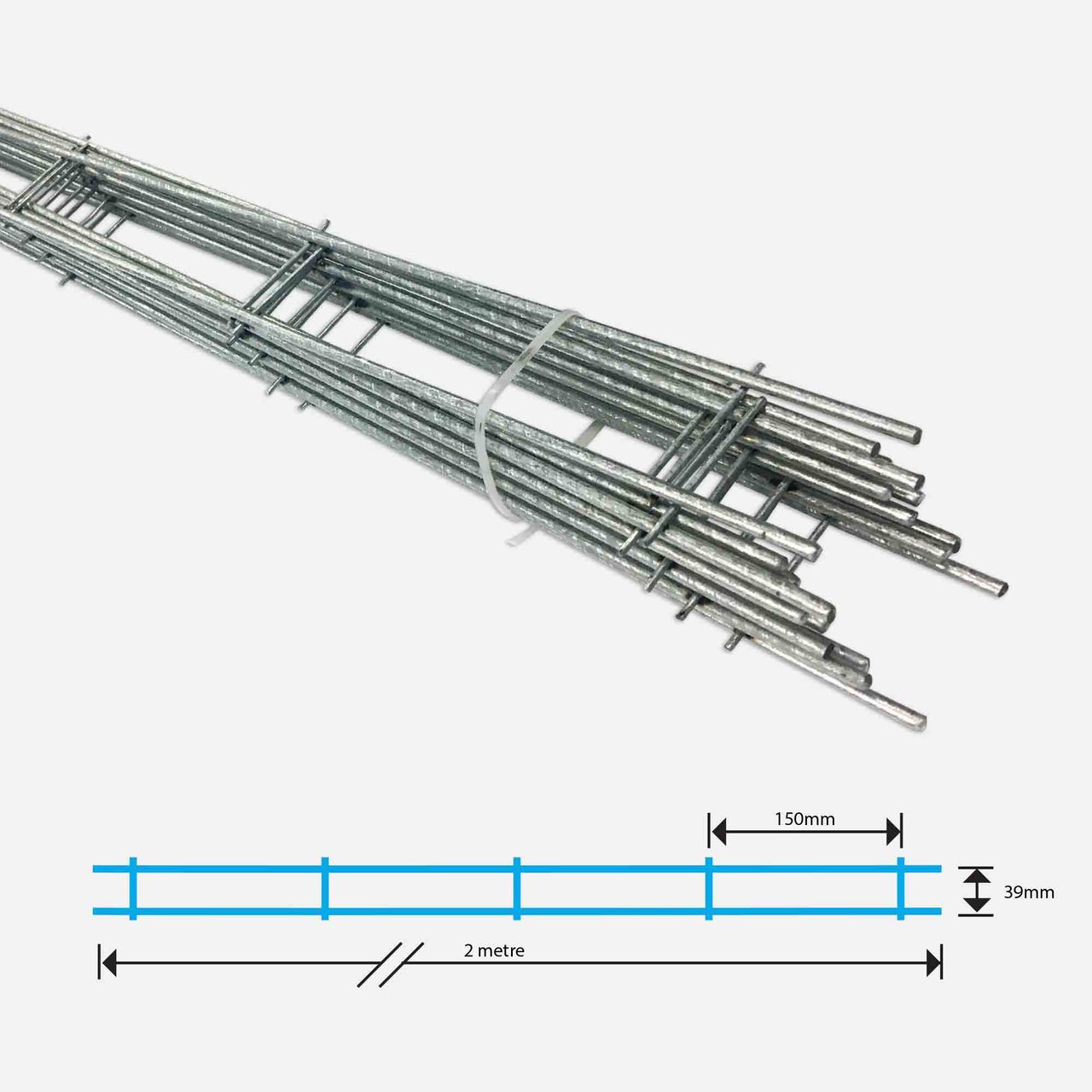

Brick and Blocklock Straight

Assists in crack prevention on bricks of blocks that are laid in stacked bond. Or when there is only a small row of bricks less then 800mm. Masons recommended to install Bricklock every 6th course.

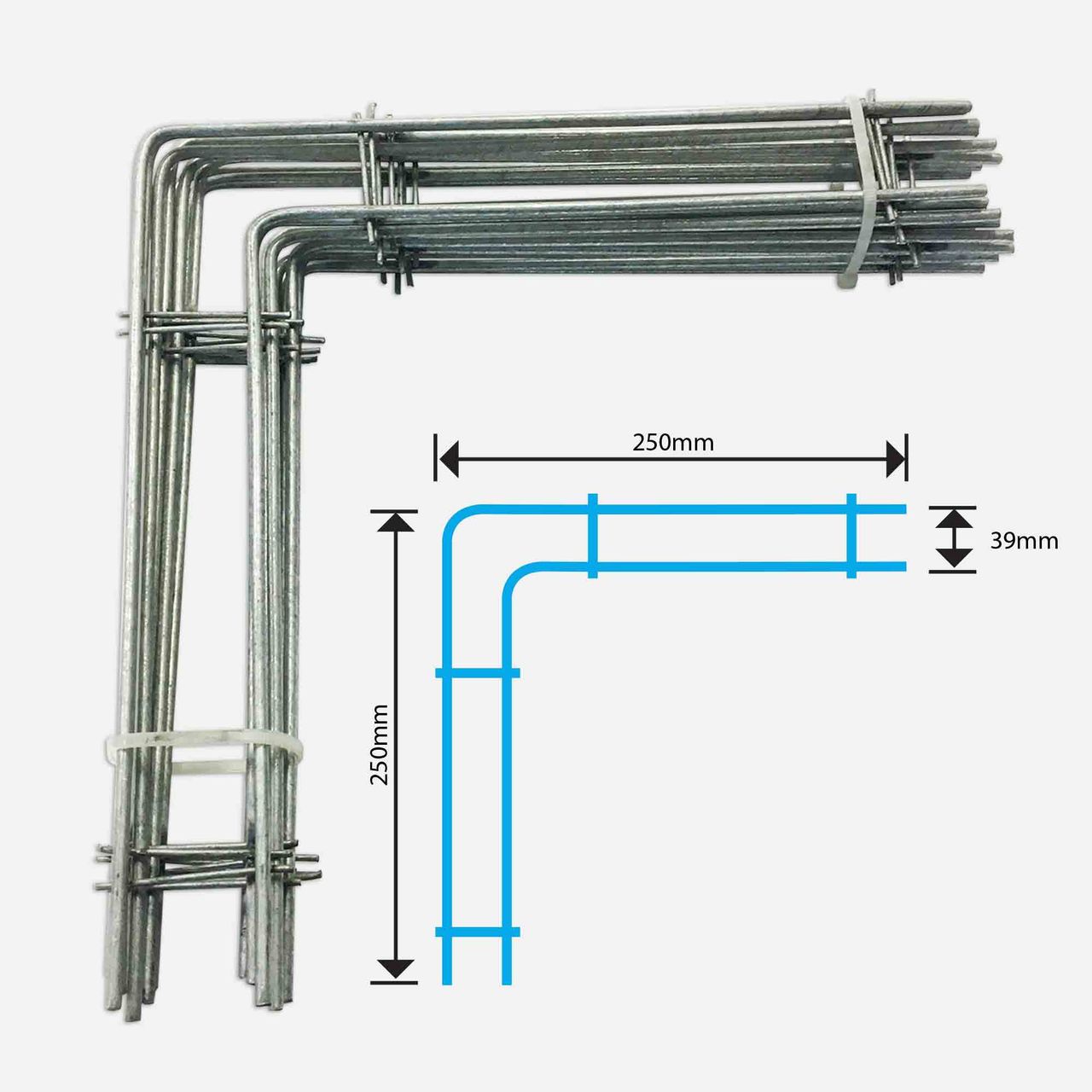

Bricklock Corner

Assists in crack prevention on external corners. Masons recommended installing a Bricklock corner every 5th course.

Technical
information

Downloads

Browse downloadable product files.

SKUs List
BRICKLOCK CNR SS
Bricklock Corner – Strainless Steel

10

BRICKLOCK CNRGAL
Bricklock Corner – Galvanised

10

BRICKLOCK STR SS
Bricklock Straight – Strainless Steel

10

BRICKLOCK STRGAL
Bricklock Straight – Galvanised

10

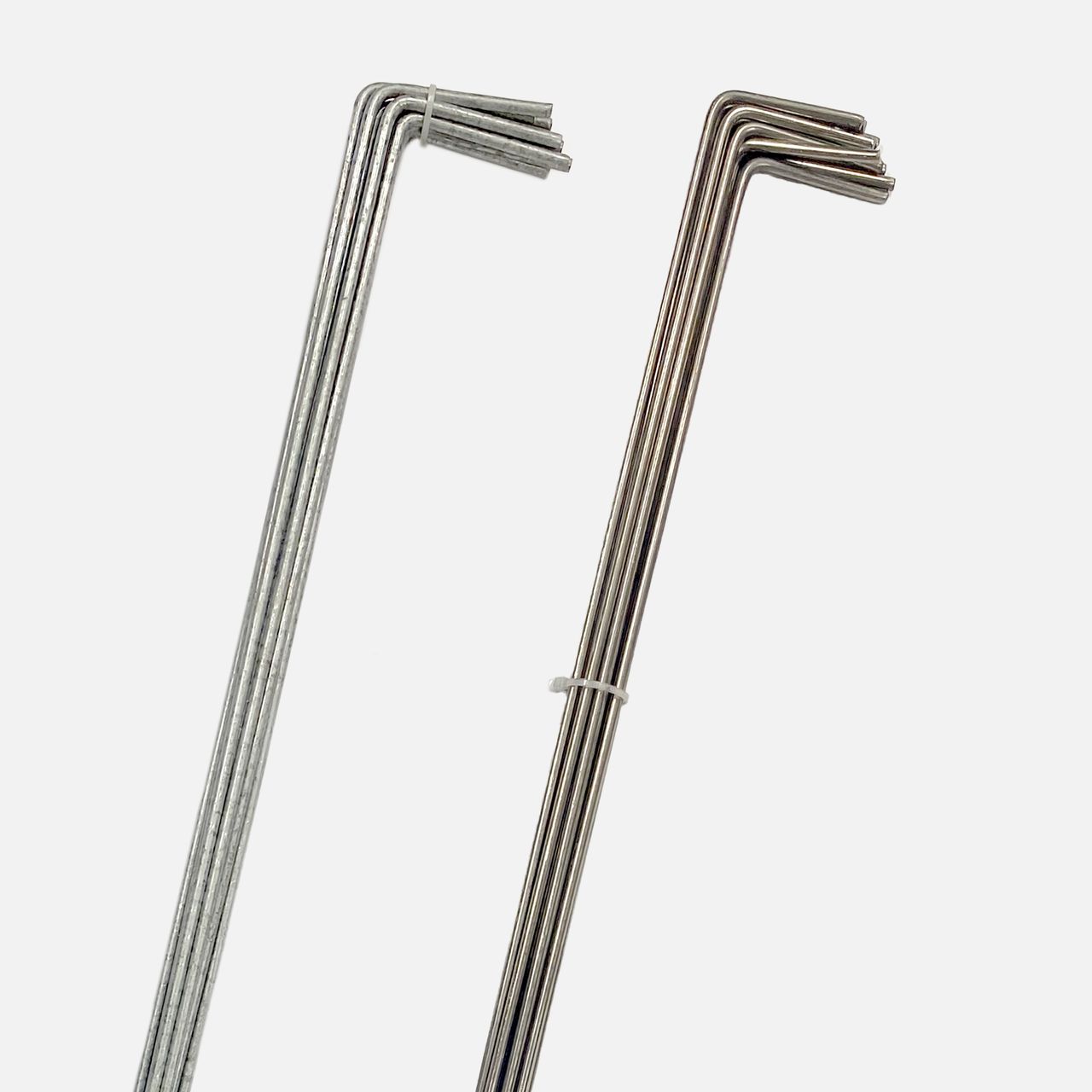

BRICKLOCK DRPGAL
Bricklock Drop – Galvanised

10

BRICKLOCKLOKSSSTR2M
Blocklock Straight – 4.0mm 140mm x 2m SS
BRICKLOCKLOKGALSTR2M
Blocklock Straight – 4.0mm 140mm x 2m GAL
