Check out our Masons Enviro AAC Intertenancy Wall Video on this link

Categories
Systems

Product
information

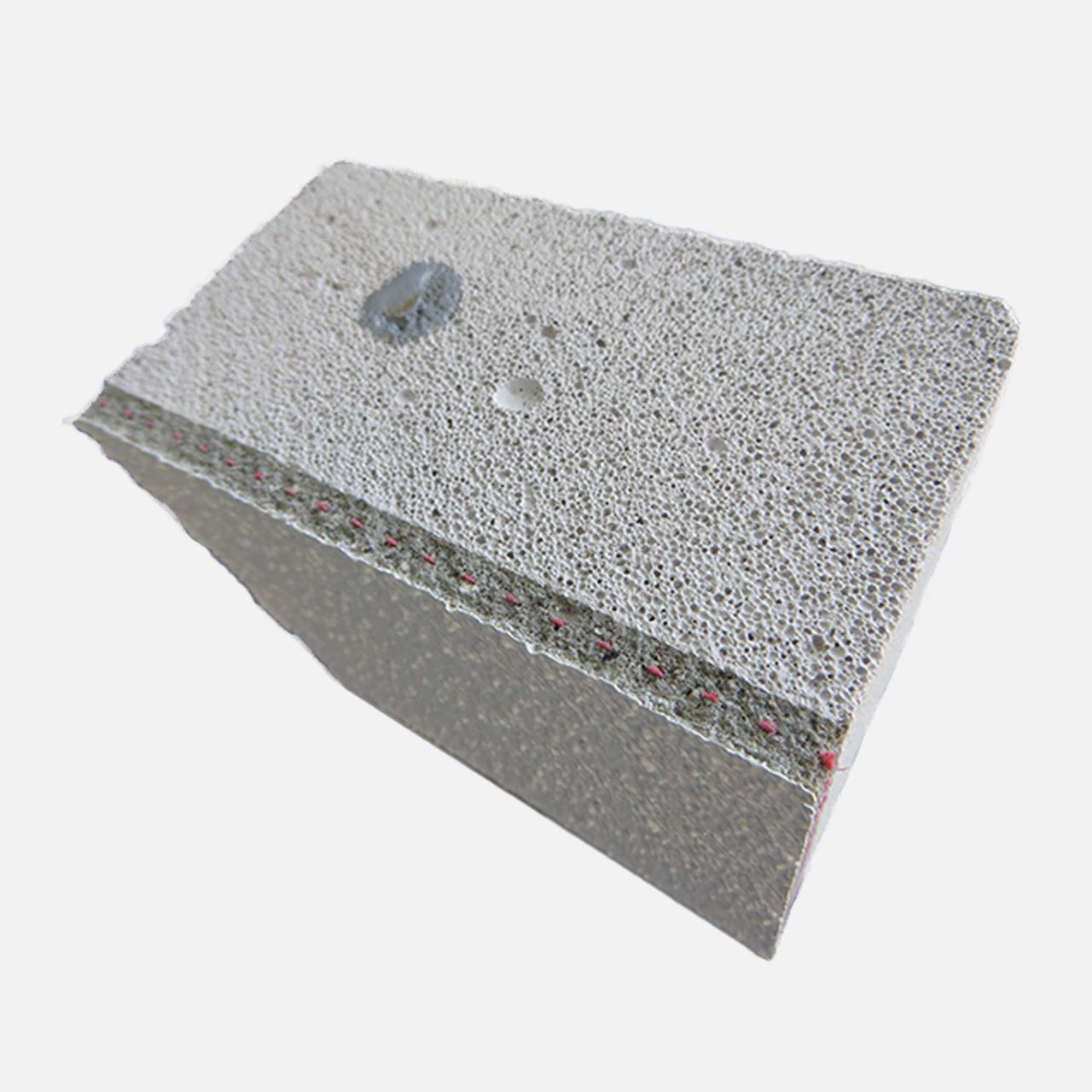

Enviro AAC Panel is a cavity based autoclaved aerated concrete 20 mm and 45 mm panel system. It is used for exterior wall cladding, fencing, and can now be used as flooring solution with our 75 mm panel.

Key Benefits

Enviro™ AAC Panel System is a plaster system where the performance is guaranteed comes with a 15 year system warranty. It is a solid, lightweight, aerated concrete substrate that is available from Masons applicators, who provide details for installation.

By specifying Masons you can be assured that you are being supported by a reputable New Zealand company that has been in the building industry for over 20 years. Lightweight and solid concrete construction.

  • Attractive monolithic textured finish

  • Flattens walls and hides joints

Installation

AAC Enviro Panels must be installed as per the details shown in this manual to ensure the quality of the cladding system.  AAC Enviro Panels must not be installed in any situation where it will come into contact with the ground.  AAC Enviro Panels cannot be used as retaining walls.

Pre-Installation checks and installation guide can be found on page 7 of the CodeMark Assessment Brief # CMA-AB 130241

AAC Enviro Panel Details
  • Dry Density: 525kg/m³

  • Intensity: 4.0MpaDry

  • Shrinkage Value: 0.6mm/m

  • Water Absorption (by volume): Up to 24 – 35%

  • Thermal Conductivity: 0.13w/mk

  • Sound Transmission Class (STC): 33 (50mm bare panel)

  • Fire Resistance: 1.5 hours

  • Panel Size: 2200 mm x 600 mm x 50 mm

NZ Building Code Performance

AAC ENVIRO Panels fixed in accordance with the instruction and details in this manual will meet the requirements and relevant section of the New Zealand Building Code including:

  • B1 – Structure

  • B2 – Durability

  • E2 – Moisture

  • F2 – Hazardous Building Materials


Structure:

In terms of NZS 3604:2011 incorporating amendments 1 & 2, AAC Panels fied as per this manual are able to withstand all earthquakes and wing loadings in all areas of New Zealand.

Technical
information

SKUs List
EVNPAN
Enviro Panel Wall – 2200x600x50mm

Single

PEBJG
Enviro Jointing Glue

Single

ENV75SS PANEL SC
Enviro Screw 75mm – Stainless Steel

Single

ENV14X75PS
Enviro Screw 75mm – Galvanised

Single

ENVSS100
Enviro Screw 100mm – Stainless Steel

Single

ENV14X100PS
Enviro Screw 100mm -Galvanised

Single

ENVRB
Enviro Reveal Bead

Single

MPSF50
Enviro Sill Flashing, 50mm

Single

MPBSC50
Enviro Base Shoe/Head Flashing 50mm

Single

Enviro AAC Panel

Enviro AAC Panel is a cavity based autoclaved aerated concrete 20mm and 45mm panel system. It is used for exterior wall cladding, fencing, and can now be used as flooring solution with our 75mm panel.

FAQ's

What appraisal does the Enviro system have?

Enviro is a Codemark appraised system

What warranty does the Enviro system have?

Enviro have a 15 year product warranty

What fire resistance does the Enviro 50mm sheet have?

1.5 Hours

What LRV (light reflective value) does Masons recommend on the Enviro system?

25% and above

What weight and dimensions are the 50mm Enviro sheets?

Each sheet weights 33KG and the dimensions are 2200/600/50mm


How do I get a quote?

Contact your local rep or Masons head office 0800522533

Where can I get the Masons plasters from?

Auckland - Masons head office. Wellington - Drywall supplies Petone. Christchurch - Southtile. Dunedin - Trademax. Invercargill - Southtile.

How do I become a licensed applicator?

Firstly, you’ll need to hold a Plasterers LBP. From there you’ll need to contact your local Masons rep.
