PrimeTherm ERS WarmWall Masonry is a rigid PIR insulation solution designed for insulating the internal face of concrete and masonry walls and soffits. Manufactured from closed-cell polyisocyanurate (PIR), it provides high thermal resistance in a slim profile, making it ideal for commercial, industrial and multi-residential buildings with exposed concrete or blockwork.
Key Benefits
HIGH THERMAL PERFORMANCE
Reduces heat loss through concrete and masonry walls and soffits
Helps meet NZBC H1 energy efficiency requirements
Improves internal temperature stability in thermal mass structures
MOISTURE & CONDENSATION MANAGEMENT
Closed-cell PIR resists moisture absorption
Reduces condensation risk on cold internal surfaces
Contributes to healthier internal environments
VERSATILE INTERNAL APPLICATION

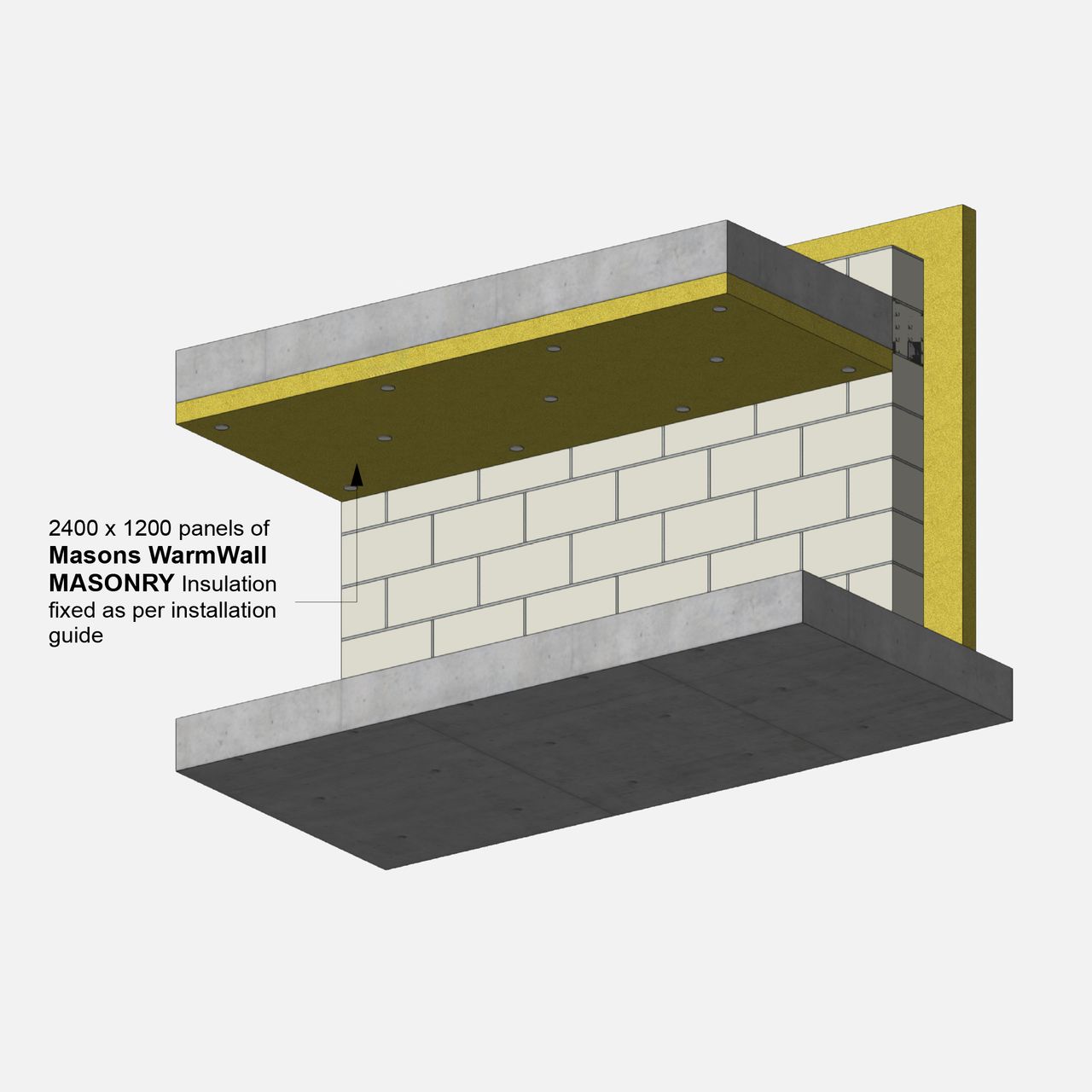

Suitable for concrete walls, blockwork and soffits
Can be mechanically fixed, adhesively bonded, or installed as a combined system
Compatible with plasterboard linings where required for fire or aesthetic compliance
Technical
information
2400 x 270 x 22mm
2400 x 300 x 22mm
2400 x 380 x 22mm
2400 x 1200 x 120mm
2400 x 1200 x 50mm
2400 x 1200 x 80mm
2400 x 1200 x 100mm
2400 x 1200 x 120mm
2400 x 1200 x 25mm
2400 x 1200 x 50mm
2400 x 1200 x 80mm
