BrickTies
Rated Heavy Duty Earthquake
Documentation Downloads

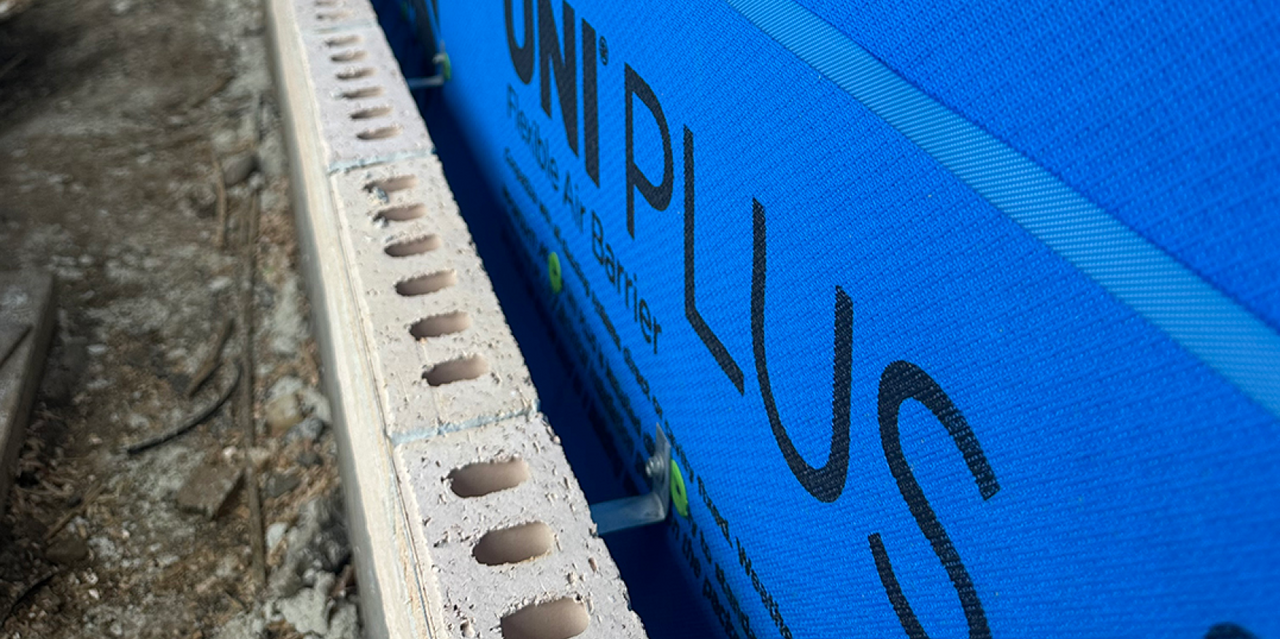

Masons BrickTies connect the brick veneer to the structural framing of a building and transfer some of the force away from the brick and on to the structural element. Masons BrickTies are rated Heavy Duty Earthquake.
Masons BrickTies can be used to tie any masonry veneer to a structural frame. Available as galvanised steel or stainless steel. The stainless steel finish will provide strong corrosion resistance, and means the product can be used in sea spray zones.
Features
- Masons Brick Ties are manufactured to comply with AS/NZS2699.1.2000
- Rated Heavy Duty Earthquake
- Can be used to tie any masonry veneer to a structural frame

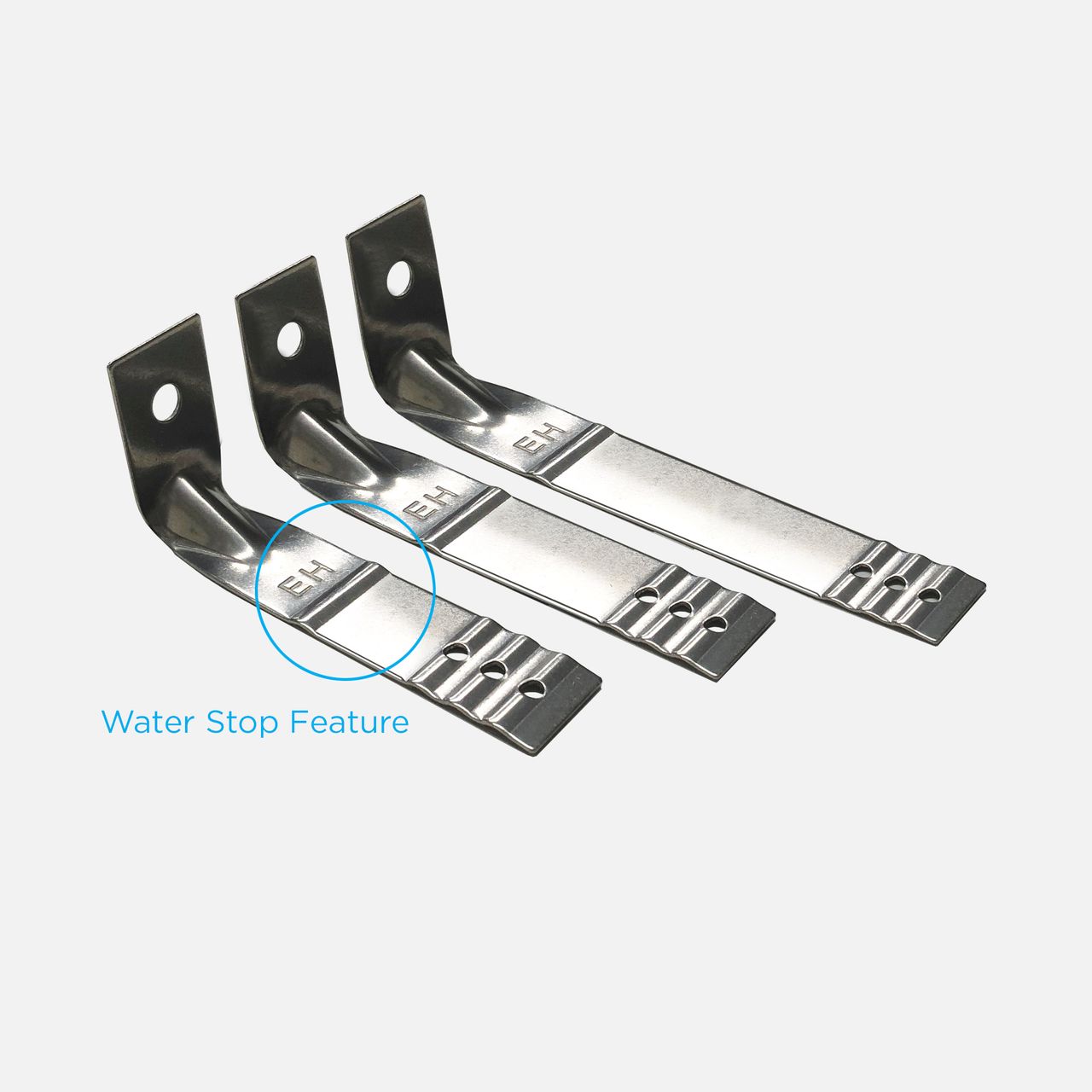

- Available in four lengths: 85mm, 90mm, 110mm & 135mm
- Available in hot dipped galvanised & 316 stainless steel
- Using 316 Stainless Steel provides ultimate durability for houses in sea-spray zones
- NEW Medium-Duty Pack also available
Technical Data
A full document data sheet is available in the document downloads at the top of this page.
The Following is to be used as a guide only
| HORIZONTAL | VERTICAL |
| 400mm | 500mm |
| 450mm | 450mm |
| 600mm | 400mm |
Approx. 5 brick ties per m2 | 100 ties per 1000 bricks

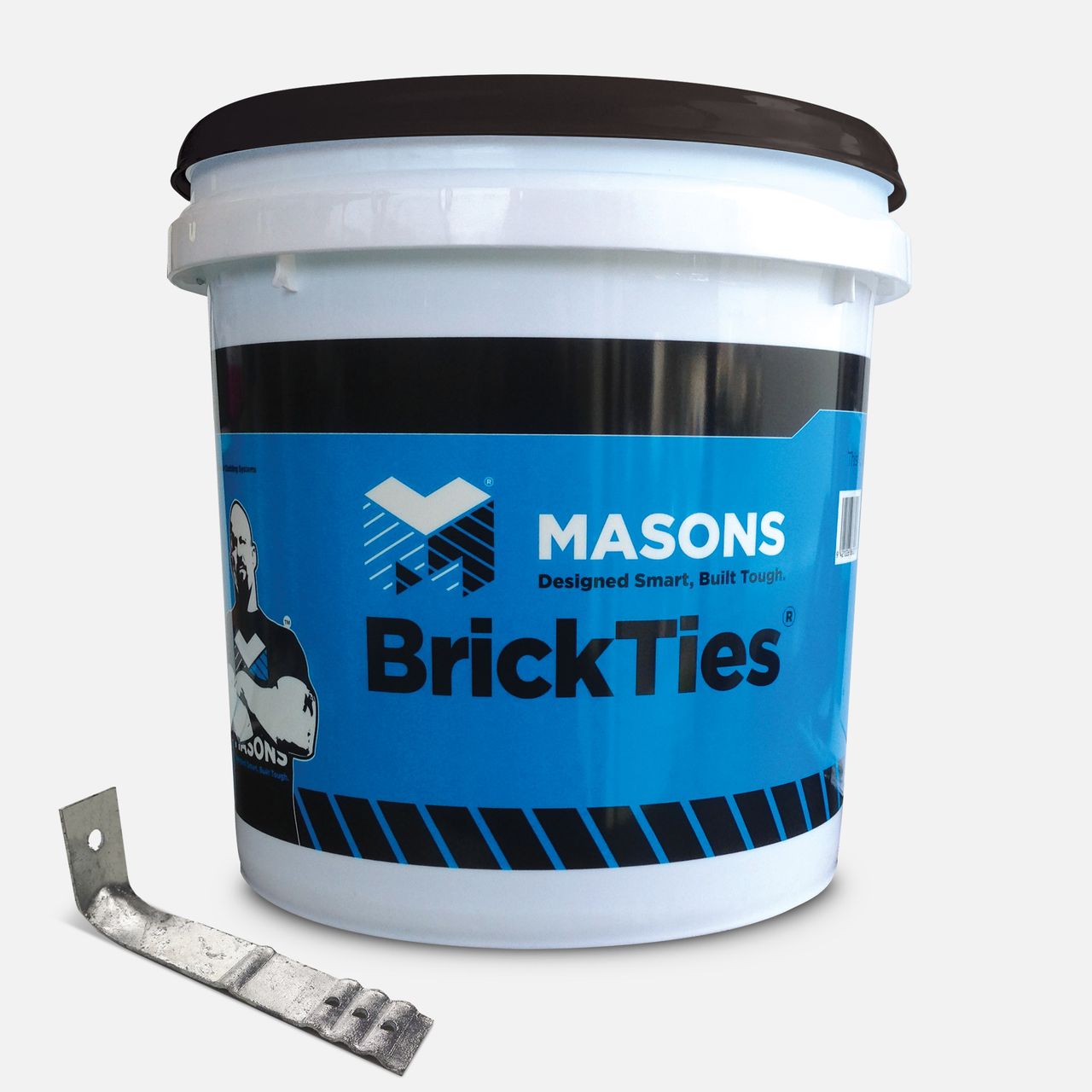

This product is available in square or round buckets.
Masons Building Products has been in the industry for over 20 years. Customer satisfaction is paramount. A dedicated team of Masons Representatives cover NZ nationwide to assist and instruct customers in using Masons products. To contact your local Rep visit here
DESCRIPTION |
ZONE |
QTY |
CODE |
|
85mm Short Hot Dipped Galvanised
|
Normal
|
250
|
TIE85HD250
|
|
85mm Short Hot Dipped Galv. Self Drilling Screws for Steel Frames
|
Normal
|
250
|
TIE85HD250SD
|
|
90mm Hot Dipped Galvanised.
|
Normal
|
250
|
TIE90HD250
|
|
90mm Hot Dipped Galv. Self Drilling Screws for Steel Frames
|
Normal
|
250
|
TIE90HD250SD
|
|
85mm Short Stainless Steel
|
Sea Spray
|
250
|
TIE85SS250
|
|
85mm short Stainless Steel. Self Drilling Screws for Steel Frames
|
Sea Spray
|
250
|
TIE85SS250SD
|
|
90mm Stainless Steel
|
Sea Spray
|
250
|
TIE90SS250
|
|
90mm Stainless Steel. Self Drilling Screws for Steel Frames
|
Sea Spray
|
250
|
TIE90SS250SD
|
|
110mm Long Hot Dipped Galvanised
|
Normal
|
250
|
TIE110HD250
|
|
110mm Long Hot Dipped Galv. Self Drilling Screws for Steel Frames
|
Normal
|
250
|
TIE110HD250SD
|
|
110mm Long Stainless Steel
|
Sea Spray
|
250
|
TIE110SS250
|
|
110mm Long Stainless Steel. Self Drilling Screws for Steel Frames
|
Sea Spray
|
250
|
TIE110SS250SD
|
|

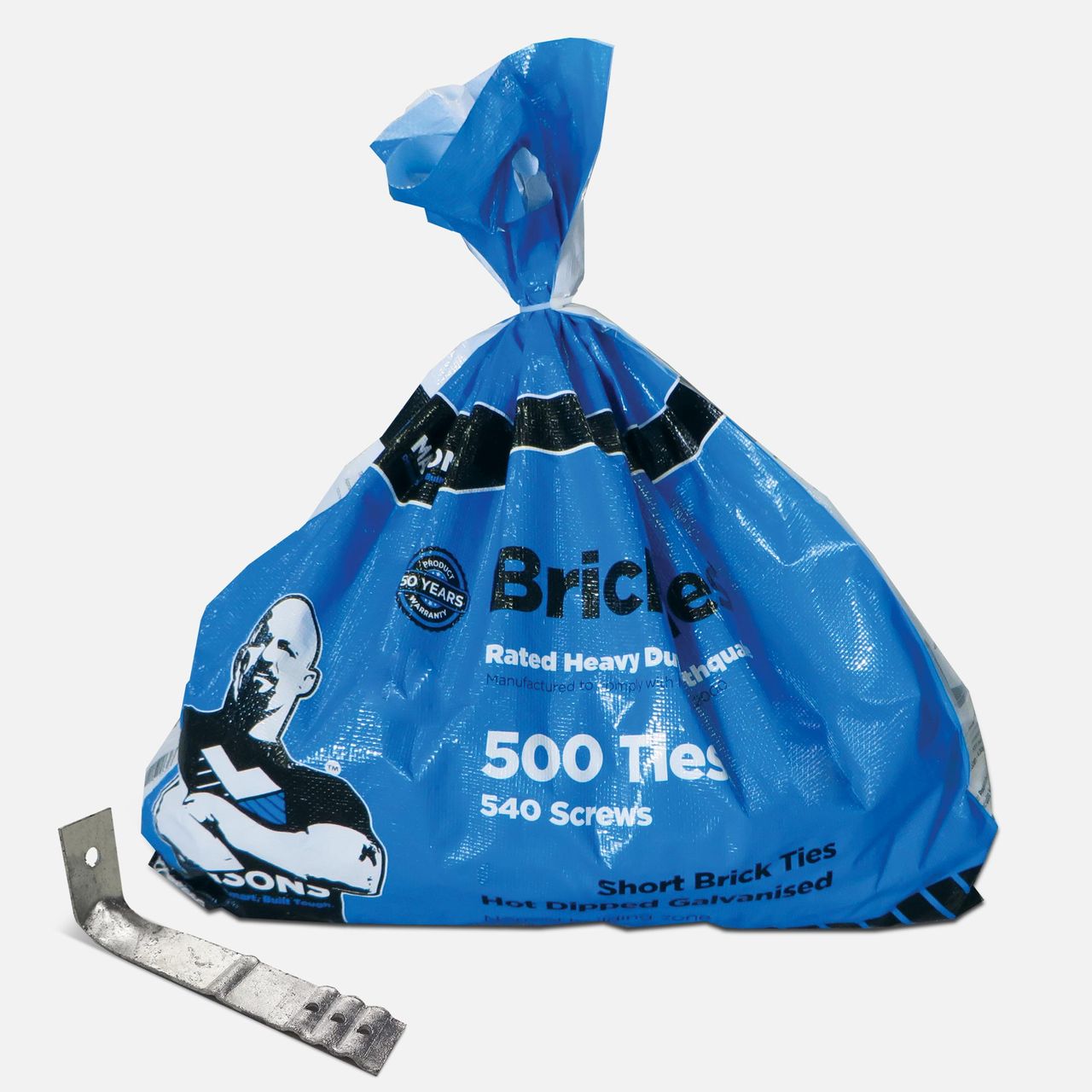

85mm Short Hot Dipped Galvanised (500)
|
Normal
|
500
|
TIE85HD500
|
|
85mm Short Hot Dipped Galv. Self Drilling Screws for Steel Frames
|
Normal
|
500
|
TIE85HD500SFS30
|
|
135mm Hot Dipped Galvanised
|
Normal
|
250
|
TIE135HD250
|
|
135mm Stainless Steel
|
Sea Spray
|
250
|
TIE135SS250
|
|

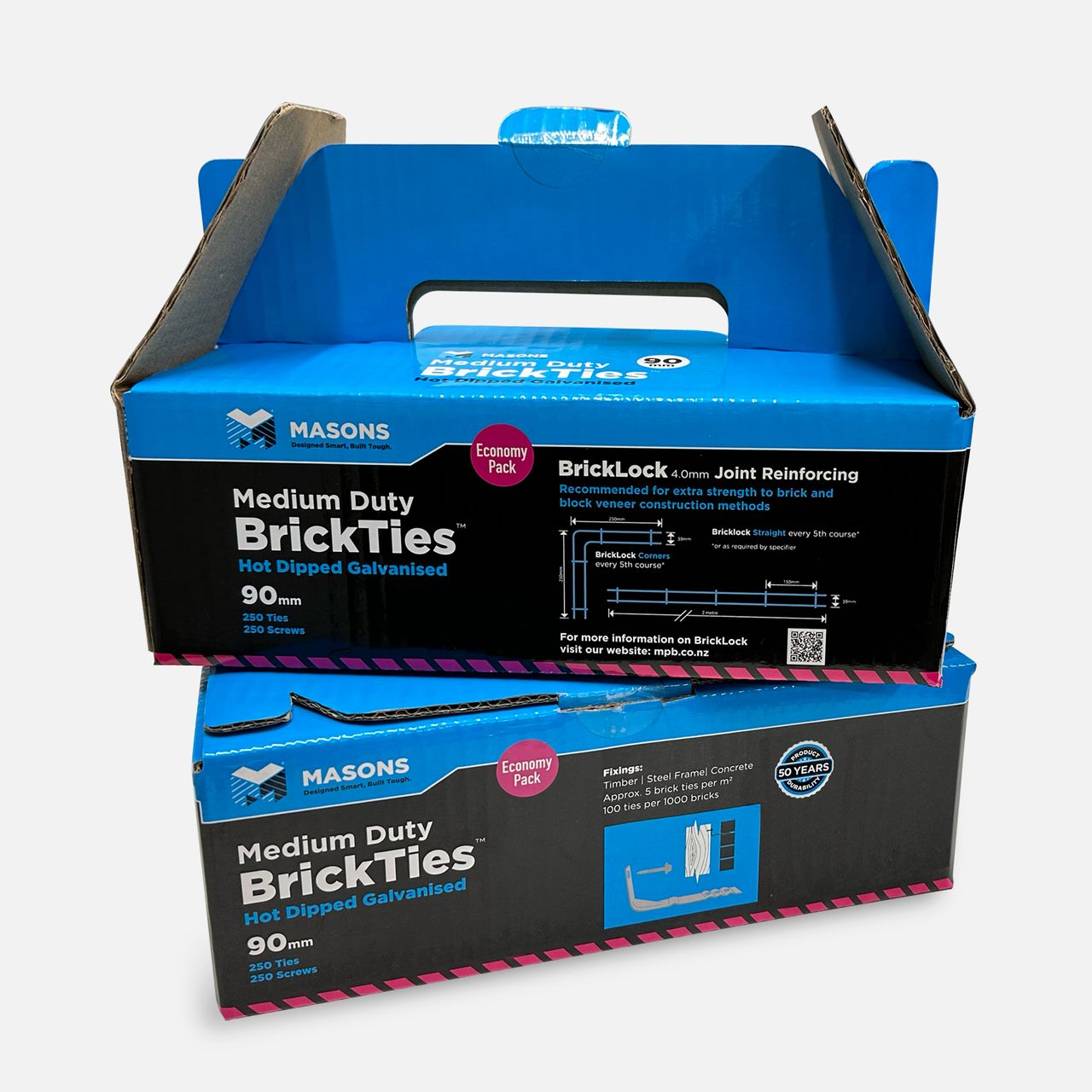

85mm Short Hot Dipped Galvanised. Medium Duty
|
Normal
|
250
|
TIE85MG250
|
|
85mm Short Hot Dipped Galv. Self Drilling Screws for Steel Frames Medium Duty
|
Normal
|
250
|
TIE85MGSD250
|
