Roof Boot Flashings
Weathertight flashings between the service pipe and roof
Documentation Downloads

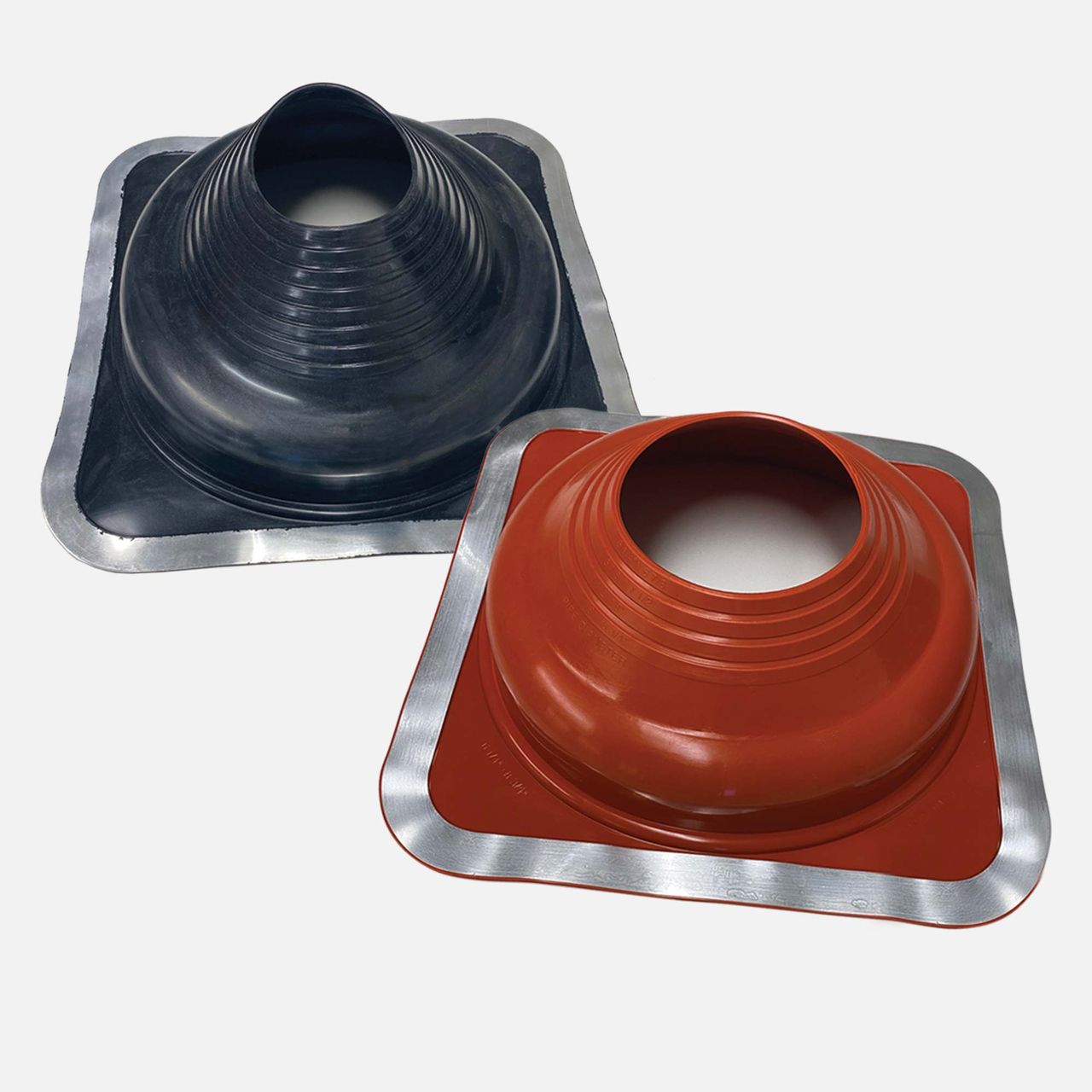

Masons Roof Boot Flashings are designed for building applications where a pipe or building service penetrates the roof of a building.

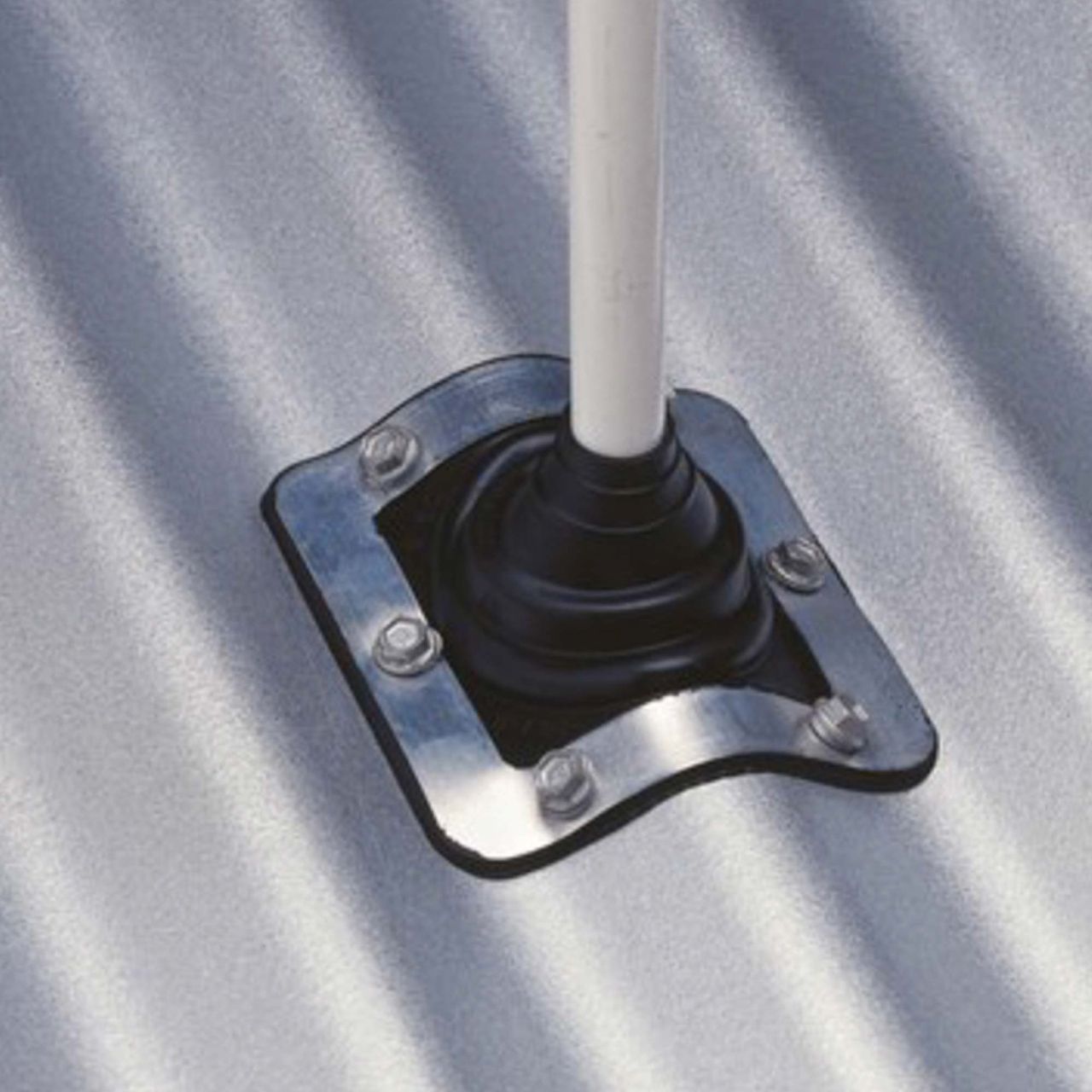

When installed the roof boot flashings create a weathertight seal between the service pipe and the building roof.
- Available in multiple sizes 0-300mm so fits any pipe penetration
- Choose between EPD Rubber or Red Silicon to withstand temperatures from -50˚C to 115˚C and up to 150˚C intermittently (EPDM) and -60˚C to 200˚C and up to 250˚C intermittently (Silicon)
- Easy to install
- Guaranteed for up to 15yrs
- For flashing pipes on horizontal claddings too
- Fits square or round pipes
Code |
Description |
Pipe Size mm |
Base Size mm |
| RBFBE | Roof Boot Flashing 0-20mm BLK EPDM | 0-20 | 57×57 |
|
RBFBE 0-35MM |
Roof Boot Flshg 0-35mm Blk EPDM |
0-35 |
100×100 |
|
RBFBE 110-170MM |
Roof Boot Flshg 110-170mm Blk EPDM |
110-170 |
283×283 |
|
RBFBE 130-230mm |
Roof Boot Flshg 130-230mm Blk EPDM |
130-230 |
305×305 |
|
RBFBE 160-220MM |
Roof Boot Flshg 160-220mm Blk EPDM |
160-220 |
360×360 |
|
RBFBE 160-300MM |
Roof Boot Flshg 160-300mm Blk EPDM |
160-300 |
445×445 |
|
RBFBE 5-120MM |
Roof Boot Flshg 5-120mm Blk EPDM |
5-120 |
215×215 |
|
RBFBE 5-55MM |
Roof Boot Flshg 5-55mm Blk EPDM |
5-55 |
135×135 |
|
RBFBE 50-70MM |
Roof Boot Flshg 50-70mm Blk EPDM |
50-70 |
175×175 |
|
RBFBECN 0-35MM |
Roof Boot Flshg 0-35mm Blk EPDM Cble Nipples |
0-35 |
92×92 |
|
RBFBERF 20-70MM |
Roof Boot Flshg 20-70mm Blk EPDM Retro Fit |
20-70 |
160×160 |
|
RBFRS 0-35MM |
Roof Boot Flshg 0-35mm Red Silcn |
0-35 |
100×100 |
|
RBFRS 110-170MM |
Roof Boot Flshg 110-170mm Red Silcn |
110-170 |
283×283 |
|
RBFRS 130-230MM |
Roof Boot Flshg 130-230mm Red Silcn |
130-230 |
305×305 |
|
RBFRS 160-220MM |
Roof Boot Flshg 160-220mm Red Silcn |
160-220 |
360×360 |
|
RBFRS 160-300MM |
Roof Boot Flshg 160-300mm Red Silcn |
160-300 |
445×445 |
|
RBFRS 5-120MM |
Roof Boot Flshg 5-120mm Red Silcn |
5-120 |
215×215 |
|
RBFRS 50-170MM |
Roof Boot Flshg 50-70mm Red Silcn |
50-70 |
175×175 |
|
RBFRSCN 0-35MM |
Roof Boot Flshg 0-35mm Red Silcn Cble Nipples |
0-35 |
98×98 |
|
RBFRSCN 5-55MM |
Roof Boot Flshg 5-55mm Red Silcn Cble Nipples |
5-55 |
137×137 |
|
RBFRSRF 20-70MM |
Roof Boot Flshg 20-70mm Red Silcn Retro Fit |
20-70 |
153×153 |
