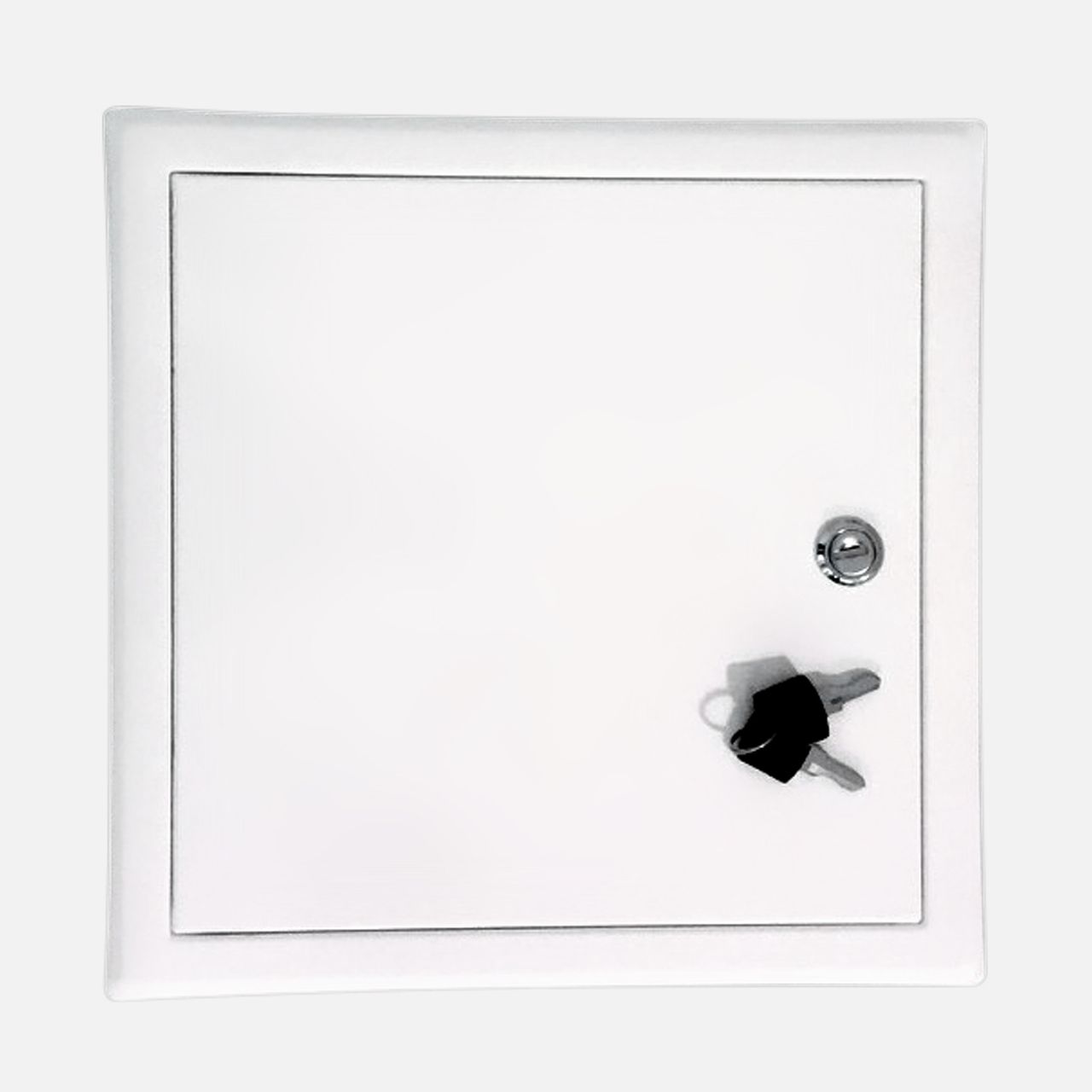

Made from quality powder-coated steel with a lock for closing. For easy access through dry lined walls and ceilings to concealed plumbing and electrical. Perfect for use in residential or commercial buildings.

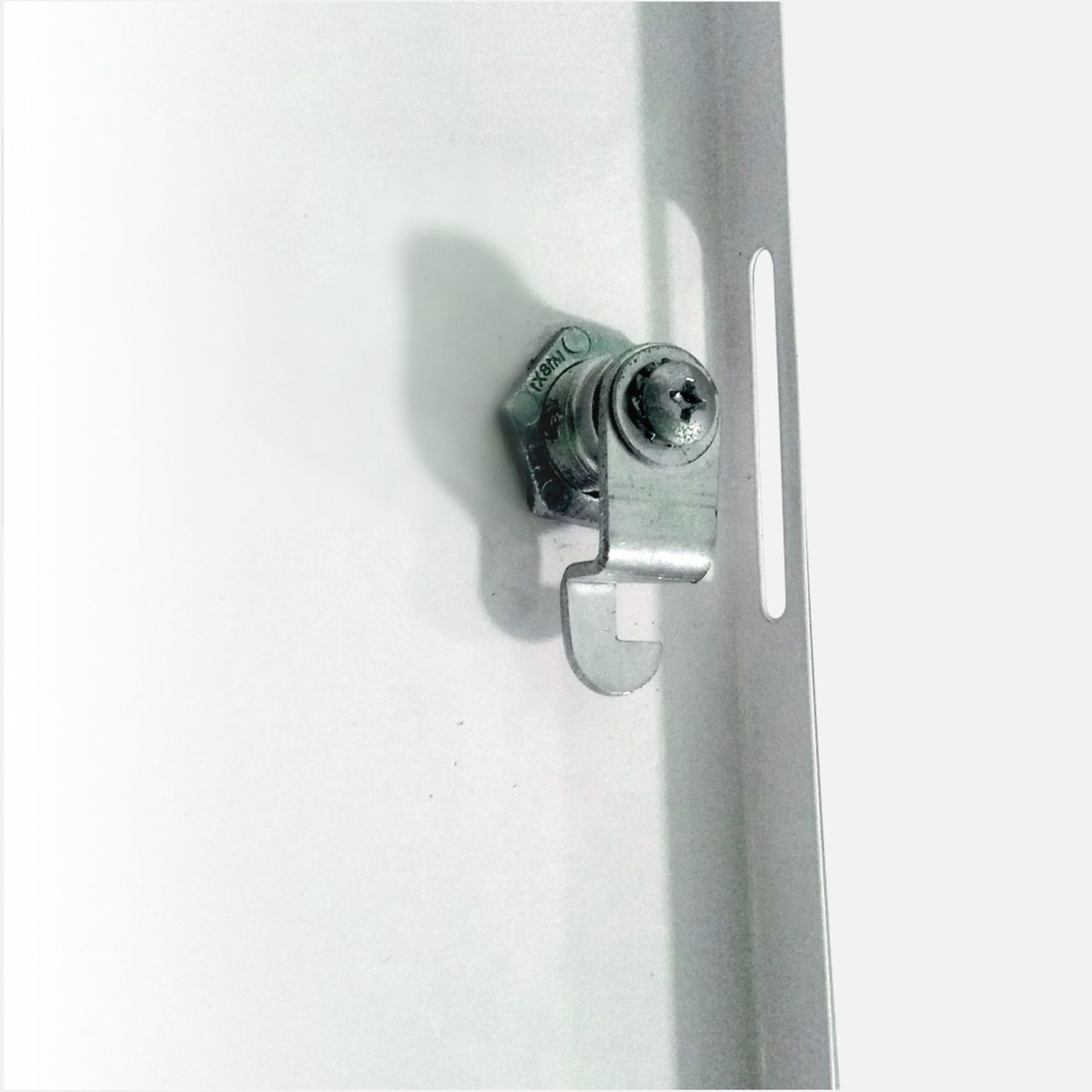

  • Lockable - 2 keys provided.

  • Easy Installation.

Installation
  • Cut a hole in the plaster board to match panel size adding 2.5mm each side to allow for clearance (eg 605 x 605mm for the 600mm panel).

  • Slot the hatch (without door for easy installation) into the opening.

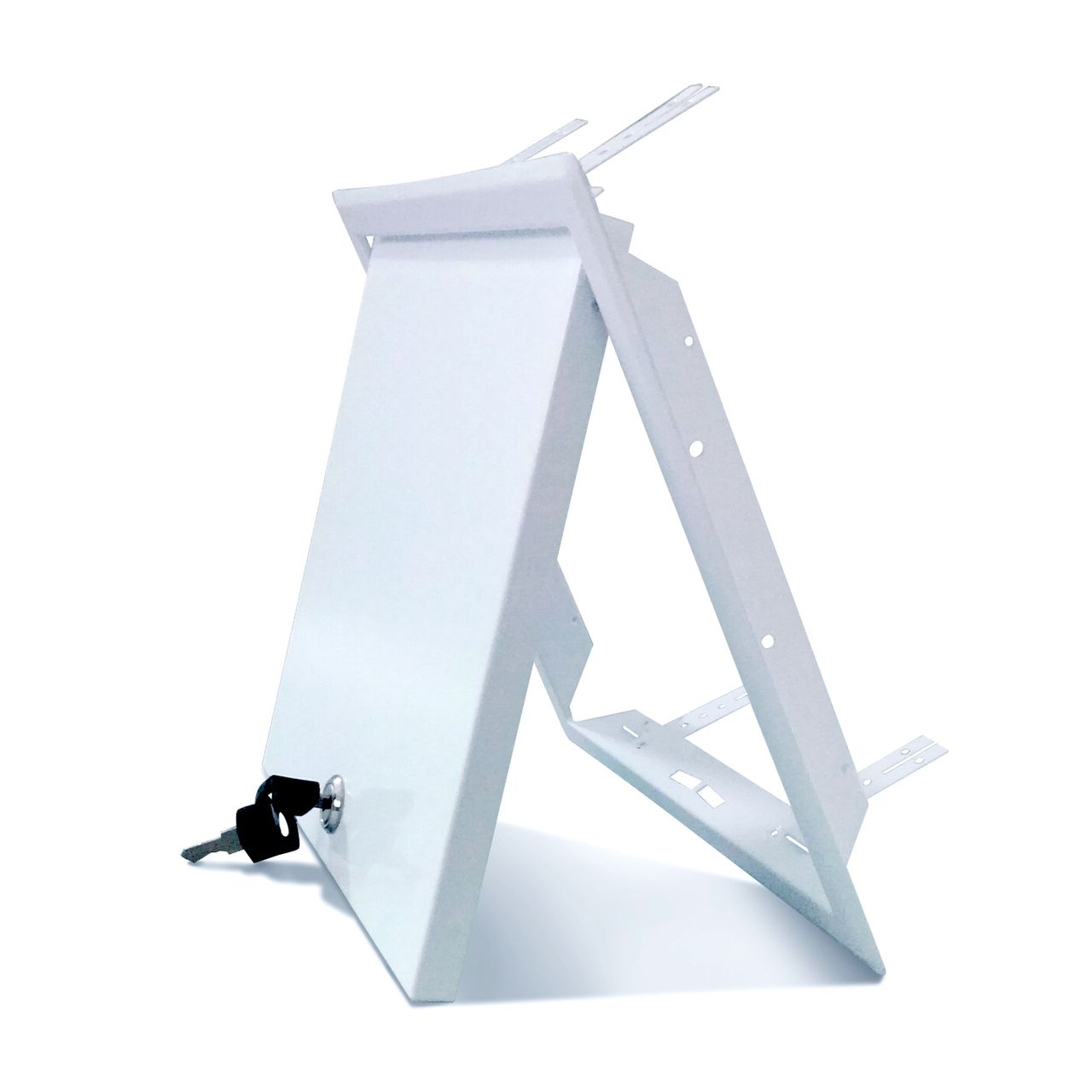

  • Bend the steel tie tags, located around the inside of the frame, to the vertical position and insert the panel into the opening.

  • Either secure the steel tie tags to the stud or support framing or fold them over to secure them to the plasterboard.

  • Fix screws through the access panel and tags to the timber frame supports until the framing is securely fixed to the timber frame

Technical
information

Downloads

Browse downloadable product files.

SKUs List
VENTMCOVER600LOCK
White Powder Coated Steel Access Panel

600mm x 600 mm
