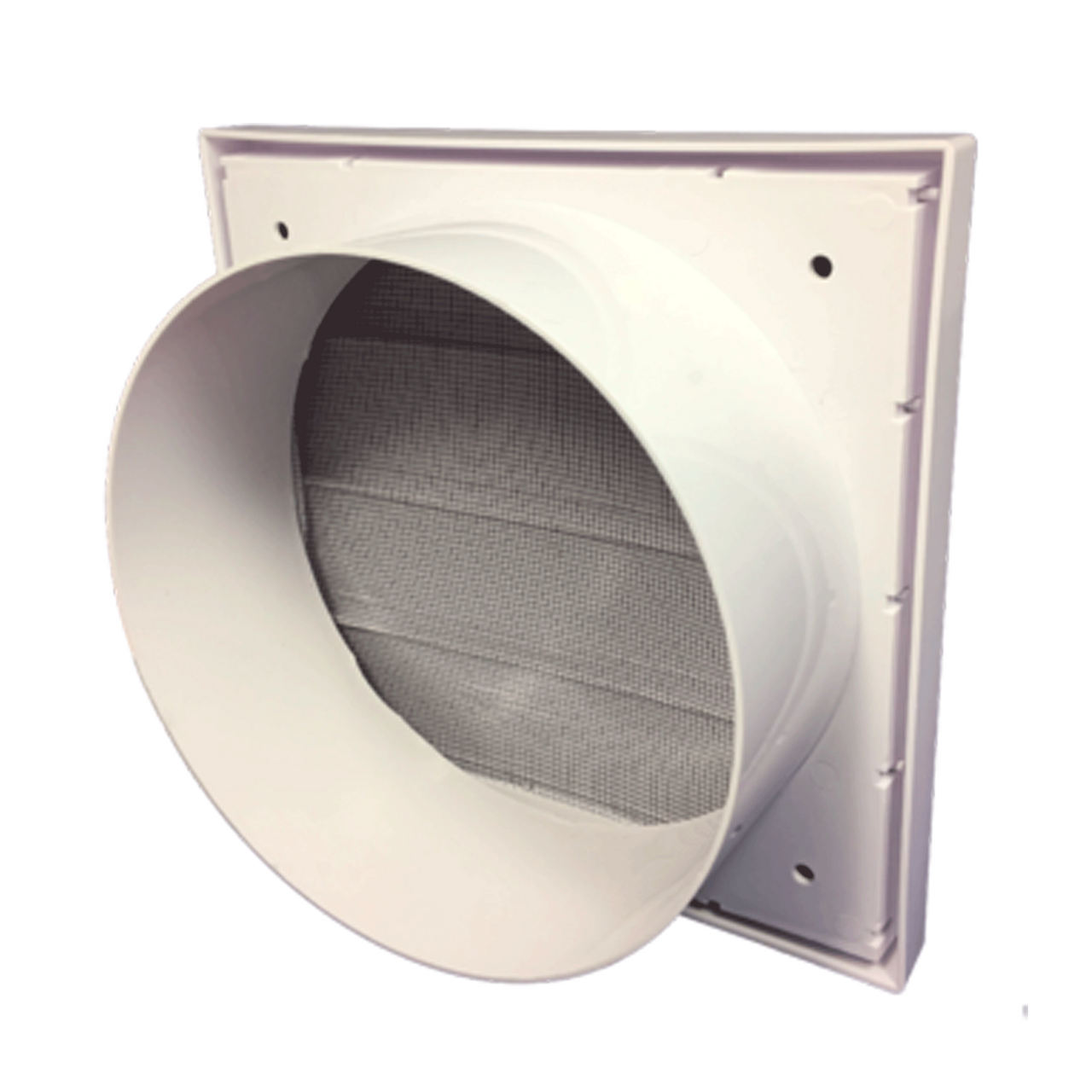

Gravity Grille White

Extra Weather Protection

Documentation Downloads
Brochure



Suitable for residential and commercial reverse cycle air distribution system

  • Extra Weather Protection – Due to back draught louvres
  • Scratch Resistant Surface – Made from ABS Plastic
  • With Insect Mesh Screen – Made from durable stainless steel
  • Easy Installation – Mounts directly to ductwork

Applications

Suitable for residential and commercial reverse cycle air distribution system. Duct can be installed onto the neck located at the rear of the grille.

  1. Mark and cut out the hole from ceiling or wall
  2. Clip out the individual louvres
  3. Remove the insect mesh screen
  4. Fix flexible duct to the spigot of diffuser
  5. Fix grille to wall or ceiling with screws provided
  6. Insert the Insect screen and louvres back into the unit

Code
Description
Neck size mm
Face size mm
VENTGRAVG100 Gravity Grille 100mm White Plst 100 125 x 125
VENTGRAVG125 Gravity Grille 125mm White Plst 125 150 x 150
VENTGRAVG150 Gravity Grille 150mm White Plst 150 175 x 175
VENTGRAVG200 Gravity Grille 200mm White Plst 200 225 x 225

Available in-store at:

TRADIES: This product might not necessarily be a stocked item by your merchant however can be ordered in.

MERCHANTS: To enquire about this product or to place an order, please contact your local Mason’s rep >
