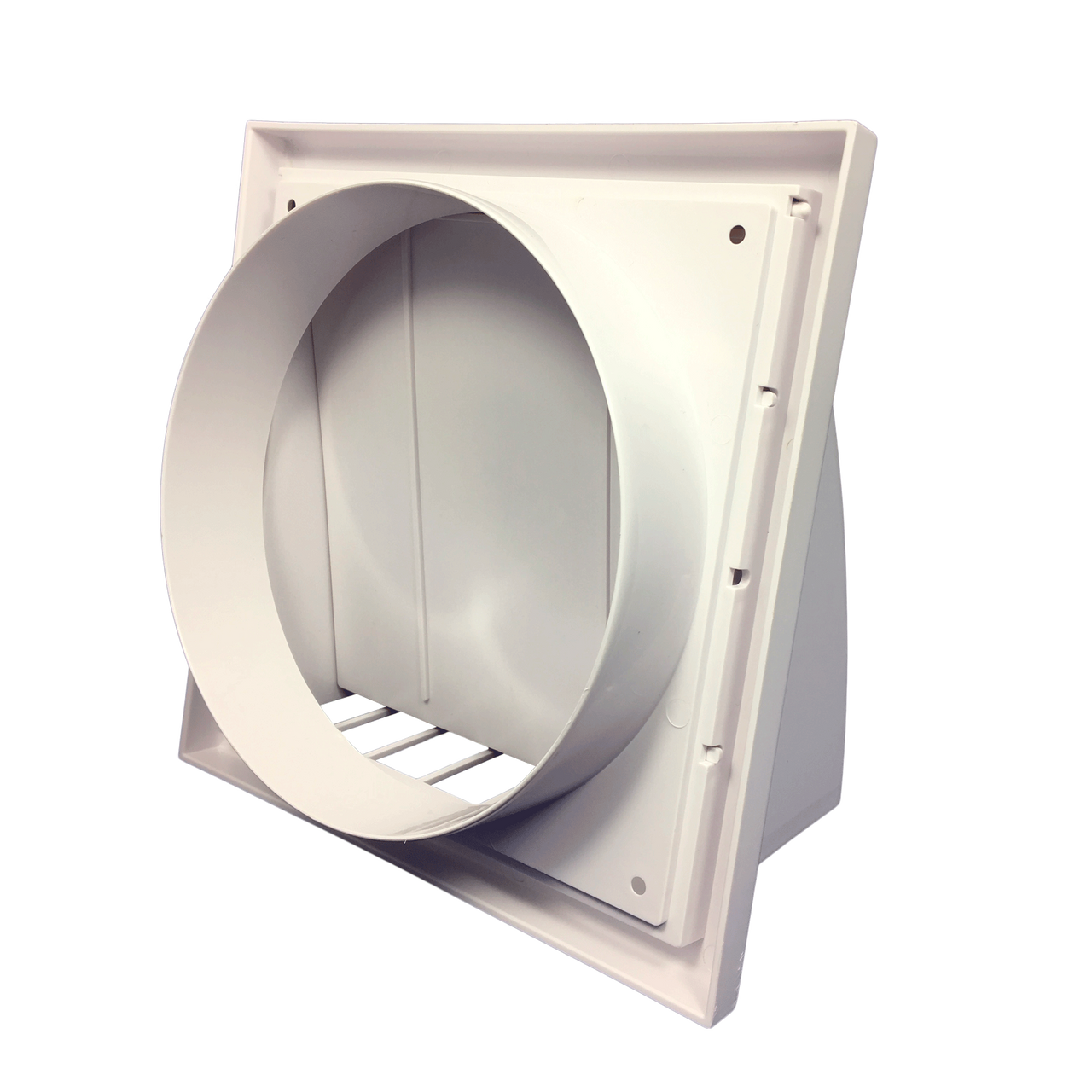

Cowl Wall Vent White

Extra Weather Protection

Documentation Downloads



Suitable for residential and commercial reverse cycle air distribution system

  • Scratch Resistant Surface – Made from ABS plastic.
  • Extra Weather Protection – Due to back draught shutter.
  • Easy Installation – Mounts directly to ductwork.
  • With Bird Mesh Screen

Applications

Suitable for residential and commercial reverse cycle air distribution system. Duct can be installed onto the neck located at the rear of the grille.

  1. Mark and cut out the hole
  2. Remove cowl face and back draught shutter
  3. Fix flexible duct to the spigot of diffuser
  4. Fix grille to wall with screws provided
  5. Insert the back draught shutter and cowl back into the unit

Code
Description
Neck size mm
Face size mm
VENTCOWL100MM Cowl Wall Vent 100mm White Plst 100 190 x 190
VENTCOWL125MM Cowl Wall Vent 125mm White Plst 125 190 x 190
VENTCOWL150MM Cowl Wall Vent 150mm White Plst 150 190 x 190
