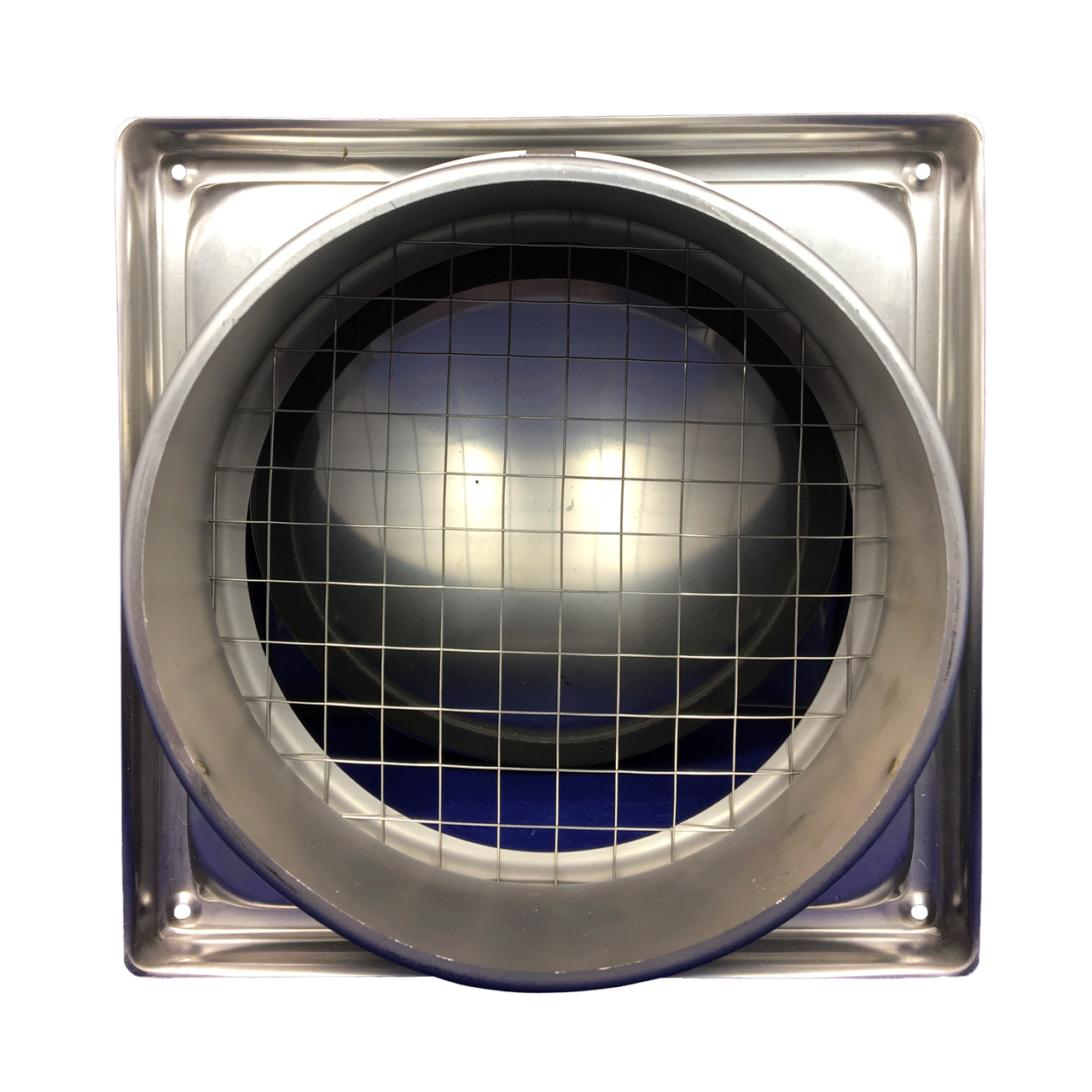

Cowl Wall Vent Stainless Steel

Quality Design Finish

Documentation Downloads

Can be used effectively in heading or cooling application

  • Quality Design Finish – 304 Stainless Steel, with rubber seal.

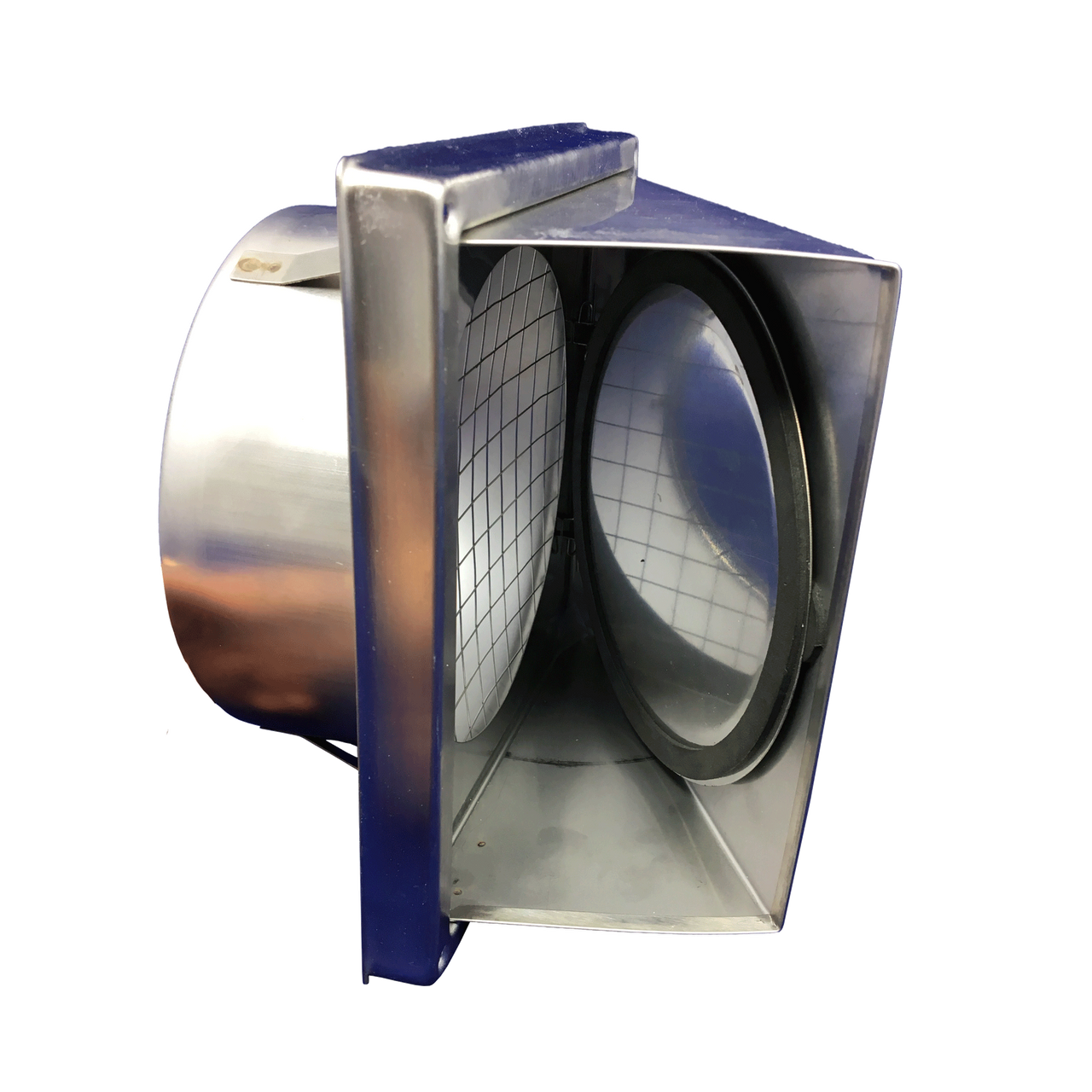

  • Extra Weather Protection – Due to back draught shutter.
  • Easy Installation – Mounts directly to ductwork.
  • With Bird Mesh Screen – Made from durable Stainless Steel.


Suitable for outdoor commercial and domestic use. Can be used effectively in heating or cooling applications.

  1. Mark and cut out the hole from wall
  2. Fix flexible duct to the spigot of diffuser
  3. Fix grille including rubber seal to wall with screws provided
Neck size mm
Face size mm
VENTCWLSS100MM Cowl Wall Vent 100mm SS 100 160 x 160
VENTCWLSS125MM Cowl Wall Vent 125mm SS 125 185 x 185
VENTCWLSS150MM Cowl Wall Vent 150mm SS 150 185 x 185
