Fixed Louvre Grille

For Ceiling or Wall Mounting

Documentation Downloads
  • Mounts Directly to Ductwork – Because of the tapered neck
  • Scratch Resistant Surface – Made from ABS plastic
  • Easy Installation – Supplied with 4 screws
  • With Insect Mesh Screen – Made from durable Stainless Steel

Applications

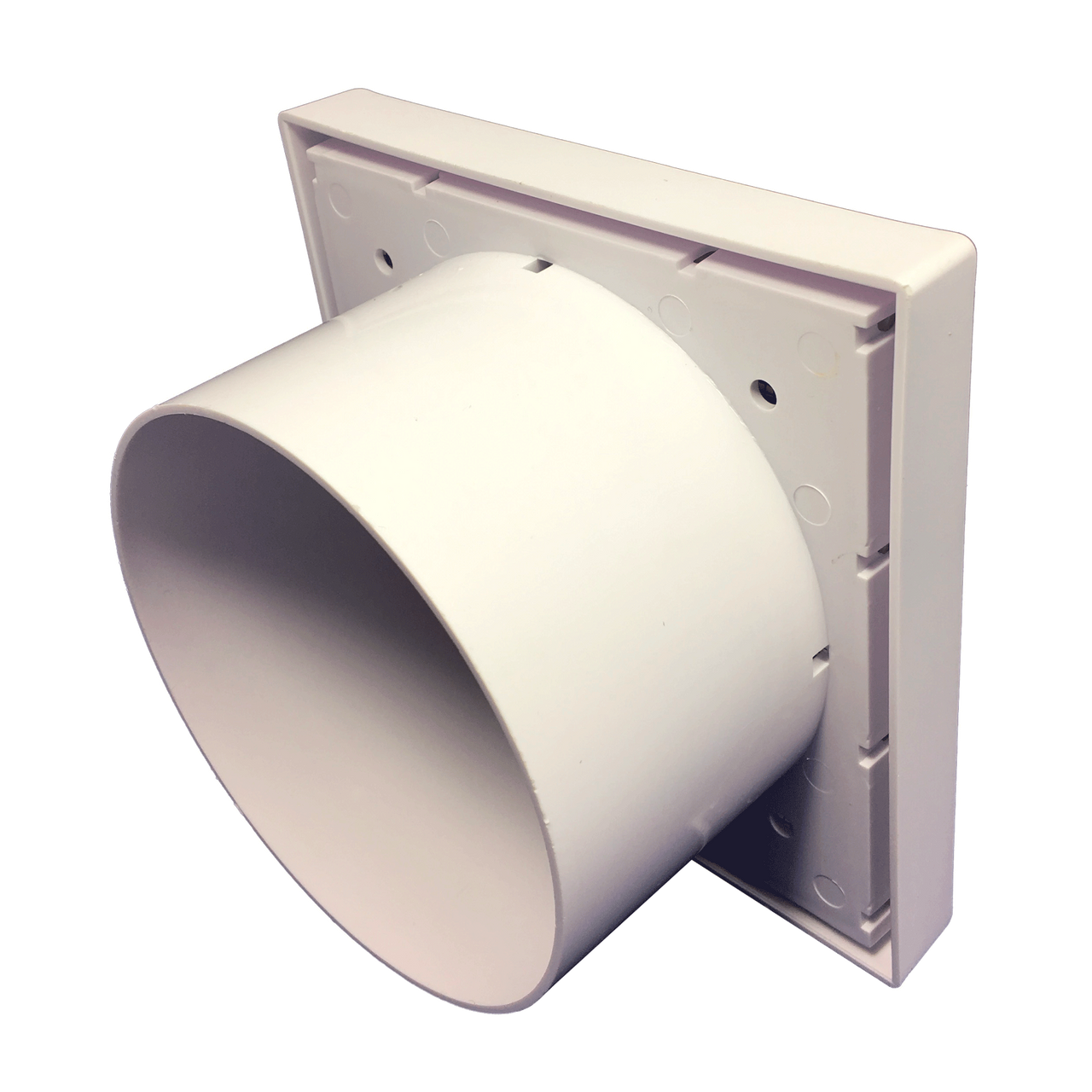

Suitable for both internal and external applications and can be either mounted on ceiling or wall. Duct can be installed onto the neck located at the rear of the grille.



  1. Mark and cut out the hole from ceiling or wall

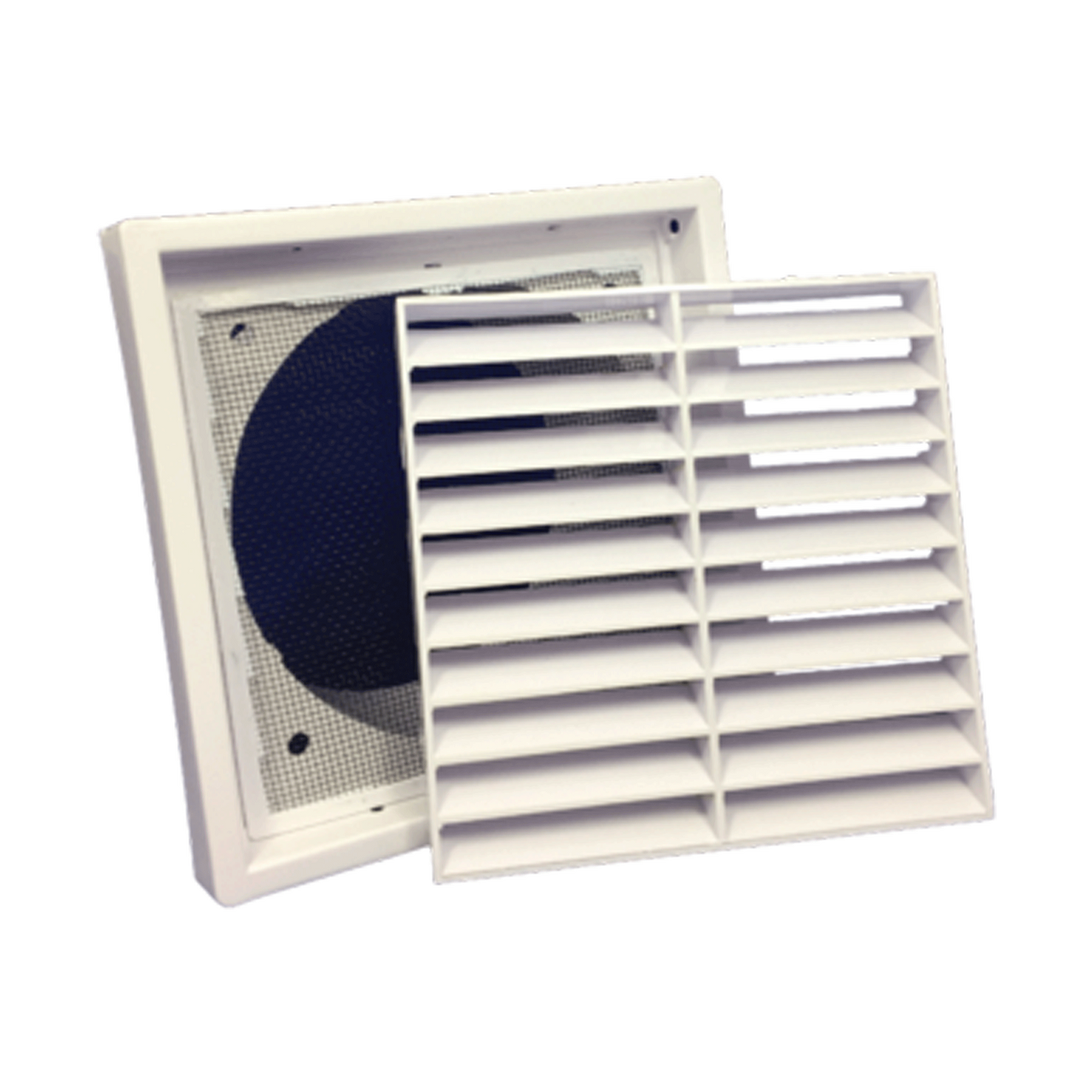

  2. Clip out the louvre insert with the assistance of a screwdriver
  3. Remove the insect mesh screen
  4. Fix flexible duct to the spigot of diffuser
  5. Fix grille to wall or ceiling with screws provided
  6. Insert the Insect screen and louvre cover back into the unit

Code
Description
Neck size mm
Face size mm
VENTFIXLG100 Fixed Louvre Grille 100mm White Plst 100 125 x 125
VENTFIXLG125 Fixed Louvre Grille 125mm White Plst 125 150 x 150
VENTFIXLG150 Fixed Louvre Grille 150mm White Plst 150 175 x 175
VENTFIXLG200 Fixed Louvre Grille 200mm White Plst 200 225 x 225
